How to Upgrade the VMware vCenter Server Appliance 5.5


Last night (CET time), vmware has made available for download the binaries of the new vSphere 5.5.

With this post I want to describe how to upgrade the vCenter Server Appliance from version 5.0.x or 5.1.x to version 5.5.

The new vCenter Server Appliance 5.5 with embedded vPostgres database, can now support up to 100 hosts and 3000 virtual machines.


  • Verify that the clocks of all machines on the vSphere network are synchronized. See Synchronizing Clocks on the vSphere Network.
  • If your vCenter Server Appliance uses an external instance of vCenter Single Sign-On, upgrade Single Sign-On to the same version as the vCenter Server Appliance version that you are upgrading to.
  • Verify that the vCenter Server SSL certificate for your existing vCenter Server Appliance is configured correctly. See VMware Knowledge Base article 2036744.
  • Back up the vCenter Server database.
  • Create a snapshot of the vCenter Server Appliance.
  1. Deploy the new version of the vCenter Server Appliance. The new appliance has a default network configuration, and the vCenter Server service is unconfigured and disabled.
  2. Connect to both the old and new appliances in separate browser windows.

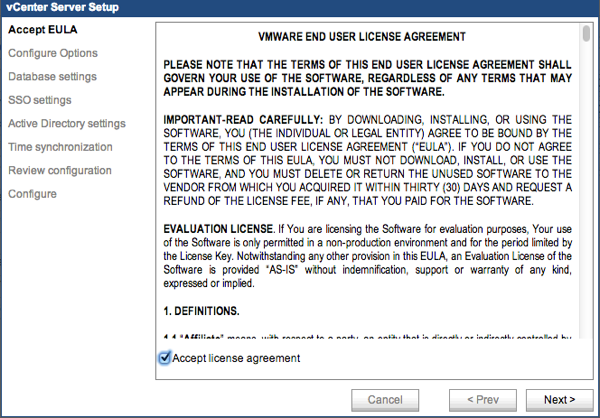

  3. In the new appliance, start the vCenter Server Setup wizard, and accept the end user license agreement. Agreement

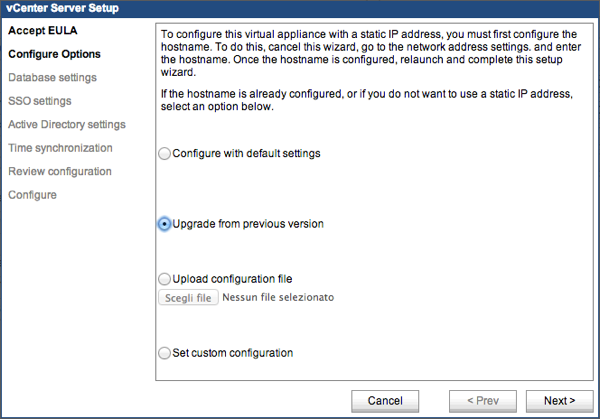

  4. In the new appliance, in the Configure Options panel, select Upgrade from previous versionupgrade from previous version
  5. In the new appliance, click Next.
  6. In the new appliance, copy the local appliance key. copy new vCSA key

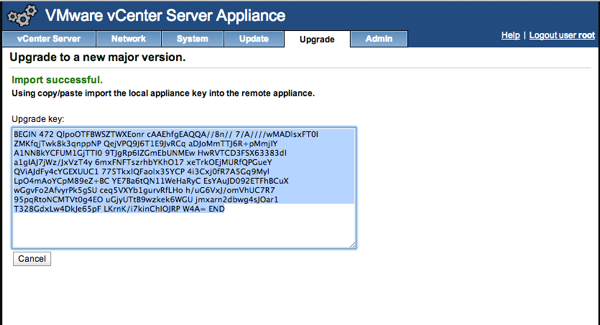

  7. In the old appliance, in the Upgrade tab, paste the new appliance key into the Upgrade key field, and click Import key and Stop vCenter Serverpaste_new_key
  8. In the old appliance, copy the local appliance key.copy old vCSA key

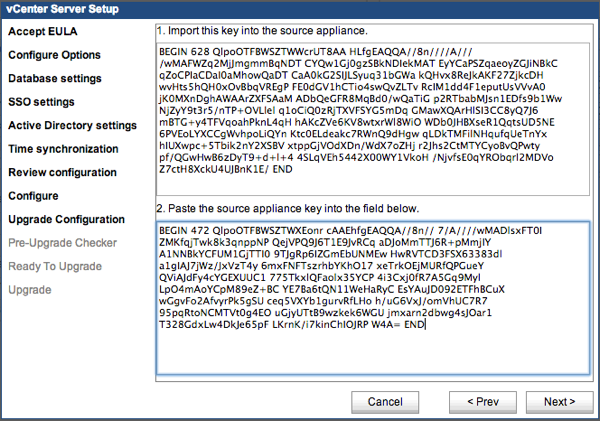

  9. In the new appliance, paste the source appliance key into the Source appliance key field and click NextThe setup performs a check on the SSL certificate of the old appliance. If problems are found, the Setup wizard displays a panel that explains the problem and provides an option to generate a new self-signed certificate for the new appliance.paste old vCSA key

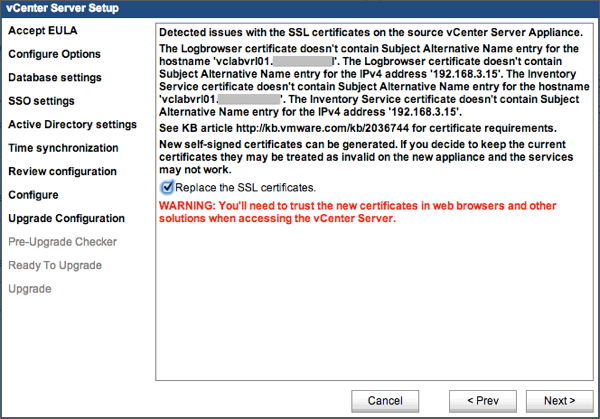

  10. If you want to keep the current certificate and manually correct any resulting problems, uncheck the checkbox Replace the vCenter SSL certificateReplace certificate
  11. If you are upgrading from a version 5.1.x appliance, the existing Single Sign-On configuration will be used for the upgraded appliance. If you were using the embedded SSO, provide the password of the new administrator@vSphere.local and click Next.administrator@vSphere.loca

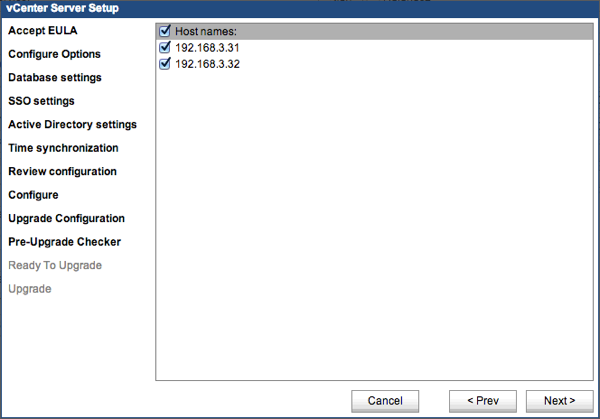

  12. Review the list of hosts managed by the source appliance and make sure that the hosts that you want the new appliance to manage are checked.hosts list

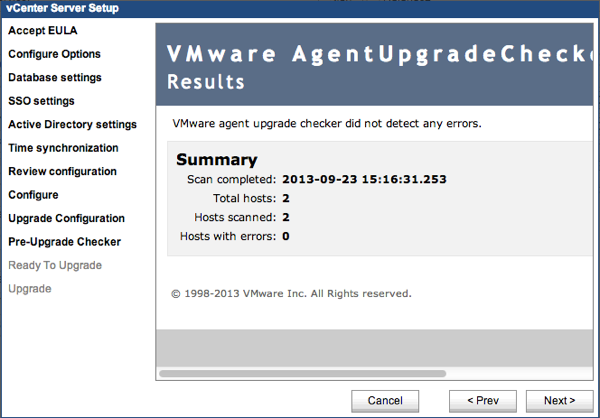

  13. Review the pre-upgrade check of the source appliance hosts and correct any errors before proceeding.Summary

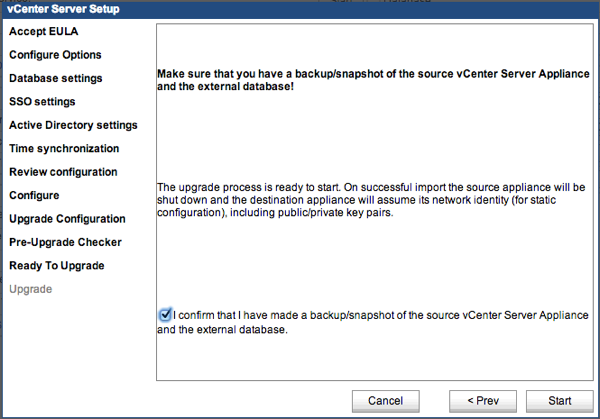

  14. Confirm that you have taken a backup or snapshot of the source appliance and external database, and click NextConfirm

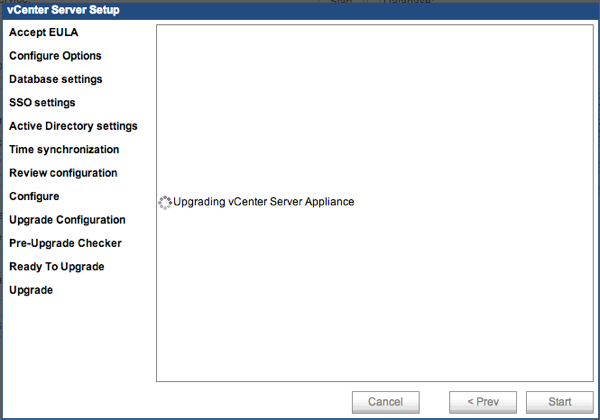

  15. The new appliance shuts down the old appliance and assumes the network identity of the old appliance. If the old appliance was configured to use dynamic addressing, the new appliance will also use dynamic addressing. When the import is complete, the new vCenter Server Appliance starts.Upgrade in progress
  16. When the upgrade is complete, click Close.Reboot
The vCenter Server Appliance is upgraded and the new appliance will reboot.
Now you only need to upgrade the hosts and than enjoy vSphere 5.5!  :)
