Red Alert on VM after a complete VMware VSA power down.


Some days ago, I was at a customer site, to assist for a controlled power down and power up of a VMware vSphere Cluster. The shared storage in this cluster is presented by the VMware Storage Appliance, aka VMware VSA.

The operation was performed by following the steps provided in the KB 2040965

The whole process went very smoothly, except for the Red Alert appeared on the VMs that are running on the VSA Datastores, after power on.

VSA reboot 1

I went to the Alarm panel, after selecting one of the VM with the red mark, but to my surprise, under “triggered alarms”, there was nothing! It was empty! :O

VSA reboot 2

As you can see the alert is only for VM running on the VSA datastores. This behavior is due to the fact that the VSA Datastore are offline when the hosts power on.

The only way to remove this red mark is to perform a vMotion of the VM to another host in the cluster.

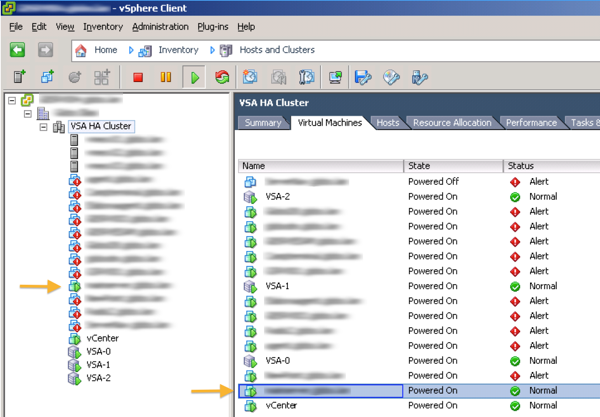

VSA reboot 3

At this time there isn’t any other way to remove this alert.
